Our Technology

Solving The Phase Noise Challenge

The accuracy and frequency requirements of clocks are increasing rapidly as networks are upgrading to meet exploding bandwidth requirements. The phase noise (or spectral purity) of the clocks is becoming a fundamental source of performance degradation in 5G mm-wave communication systems and in automotive and defense radar systems.
Crystals provide excellent phase noise and stability at a single fixed low frequency.
SAW devices provide excellent phase noise at fixed multi-GHz frequencies but with poorer stability.
Phase Locked Loops (PLLs) provide higher multi-GHz frequencies with good stability and programmability but at the expense of degraded phase noise.​
The Virtual Crystal is the only technology in the world that simultaneously provides the low phase noise of a SAW, the superior stability of a crystal and the fine programmability of a PLL at multi-GHz frequencies.
Unmatched Specifications
Unmatched Specifications

World’s Only Programmable Frequency Reference With 29 Fs Of Jitter

Performance

Performance

Programmability

Programmability

Power

Power

Easy to Use

Comprehensive Portfolio of Silicon

Any Frequency Programmable Up To 2 GHz

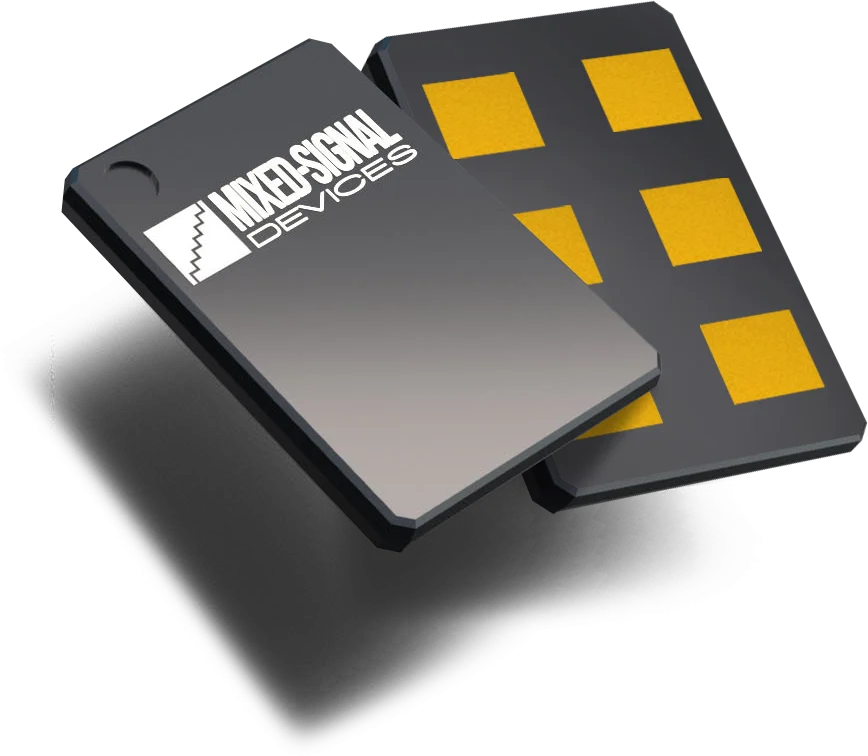

Crystal Oscillator

Crystal Oscillator

Voltage Controlled Oscillator

Voltage Controlled Oscillator

Clock Generator

Jitter Attenuator

Jitter Attenuator

Traditional Analog Phase Locked Loop
Differentiated Approach

Eliminating The Traditional Analog Phase Locked Loop

Digital Synthesis of waveforms results in unprecedented improvements in performance and reliability enabling robust operation over process, voltage and temperature.

VCXO PRODUCTS

Ordering Part #
Number of Frequencies
Frequency Range (MHz)
Phase Jitter (fs RMS)
Stability (+/- ppm)
Output Format(s)
Vdd (V)
Temperature Range
Package Size (mm)
Description
MS1220A

Single

50 to 1000

45

20

CML; LVDS; LVPECL; HCSL

1.8

-40°C to 85°C

3.2x2.5

Single Freq Ultra Low Jitter VCXO

MS1220B

Dual

50 to 1000

45

20

CML; LVDS; LVPECL; HCSL

1.8

-40°C to 85°C

3.2x2.5

Dual Freq Ultra Low Jitter VCXO

MS1220C

Quad

50 to 1000

45

20

CML; LVDS; LVPECL; HCSL

1.8

-40°C to 85°C

3.2x2.5

Quad Freq Ultra Low Jitter VCXO

MS1240A

Single

100 to 2000

20

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

3.2X2.5

Single Freq Ultra Low Jitter VCXO

MS1240B

Dual

100 to 2000

20

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

3.2X2.5

Dual Freq Ultra Low Jitter VCXO

MS1240C

Quad

100 to 2000

20

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

3.2X2.5

Quad Freq Ultra Low Jitter VCXO

XO PRODUCTS

Ordering Part #
Number of Frequencies
Frequency Range (MHz)
Phase Jitter (fs RMS)
Stability (+/- ppm)
Output Format(s)
Vdd (V)
Temperature Range
Package Size (mm)
Description
MS1120A

Single

50 to 1000

45

20

CML; LVDS; LVPECL; HCSL

1.8

-40°C to 85°C

3.2x2.5

Single Freq Ultra Low Jitter XO

MS1120B

Dual

50 to 1000

45

20

CML; LVDS; LVPECL; HCSL

1.8

-40°C to 85°C

3.2x2.5

Dual Freq Ultra Low Jitter XO

MS1120C

Quad

50 to 1000

45

20

CML; LVDS; LVPECL; HCSL

1.8

-40°C to 85°C

3.2x2.5

Quad Freq Ultra Low Jitter XO

MS1130A

Single

50 to 1000

45

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

2.5.X2.0

Single Freq Ultra Low Jitter XO

MS1130B

Dual

50 to 1000

45

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

2.5.X2.0

Dual Freq Ultra Low Jitter XO

MS1130C

Quad

50 to 1000

45

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

2.5.X2.0

Quad Freq Ultra Low Jitter XO

MS1140A

Single

100 to 2000

20

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

3.2X2.5

Single Freq Ultra Low Jitter XO

MS1140B

Dual

100 to 2000

20

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

3.2X2.5

Dual Freq Ultra Low Jitter XO

MS1140C

Quad

100 to 2000

20

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

3.2X2.5

Quad Freq Ultra Low Jitter XO

MS1150A

Single

100 to 2000

20

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

2.5.X2.0

Single Freq Ultra Low Jitter XO

MS1150B

Dual

100 to 2000

20

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

2.5.X2.0

Dual Freq Ultra Low Jitter XO

MS1150C

Quad

100 to 2000

20

20

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

2.5.X2.0

Quad Freq Ultra Low Jitter XO

TCXO PRODUCTS

Ordering Part #
Number of Frequencies
Frequency Range (MHz)
Phase Jitter (fs RMS)
Stability (+/- ppm)
Output Format(s)
Vdd (V)
Temperature Range
Package Size (mm)
Description
MS1300A

Single

50 to 1000

45

1

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

3.2x2.5

Single Freq Ultra Low Jitter TCXO

MS1300B

Dual

50 to 1000

45

1

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

3.2x2.5

Dual Freq Ultra Low Jitter TCXO

MS1300C

Quad

50 to 1000

45

1

CML; LVDS; LVPECL; HCSL

1.8

-40° to 85°C

3.2x2.5

Quad Freq Ultra Low Jitter TCXO

MS1310A

Single

100 to 2000

20

1

CML; LVDS; LVPECL; HCSL

1.8

-40°C to 85°C

3.2x2.5

Single Freq Ultra Low Jitter TCXO

MS1310B

Dual

100 to 2000

20

1

CML; LVDS; LVPECL; HCSL

1.8

-40°C to 85°C

3.2x2.5

Dual Freq Ultra Low Jitter TCXO

MS1310C

Quad

100 to 2000

20

1

CML; LVDS; LVPECL; HCSL

1.8

-40°C to 85°C

3.2x2.5

Quad Freq Ultra Low Jitter TCXO

JAT PRODUCTS

Ordering Part #
Number of Inputs
Number of Outputs
Input Frequency Range
Output Frequency Range
Phase Jitter (fs RMS)
Output Format(s)
Vdd (V)
Temperature Range
Package Size (mm)
Description
MS1402

6

2

8KHz to 750MHz (Diff), 1KHz to 200 MHz, 1PPS (SE)

10 to 2000 MHz

25

CML; LVDS; LVPECL; HCSL

1.8

-40°C to 85°C

48L (7x7)

High Performance Jitter Attenuator
